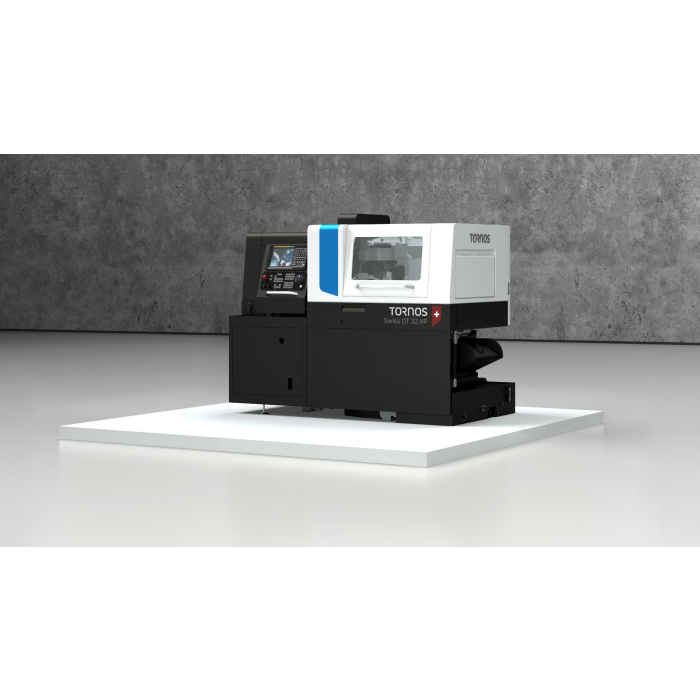

Tornos DT32 HP automatic lathe
SKU: DT32HP
Swiss DT32HP – automatic lathes for precision production. The Swiss DT32HP is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications. Key features: Six models in the DT series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm, Five-axis and six-axis kinematics for DT7/6, DT10/6 and DT26/6-HP, Optional B axis – additional milling and angle operations capabilities, Working range: bar diameter up to 32 mm, headstock stroke 250 mm, Tool capabilities – up to 29 tools, including 14 driven ones, Spindle speed: up to 8,000 rpm (main spindle), up to 8,000 rpm (sub-spindle), Spindle power and speed: main spindle power 10.5kW, counter spindle power 10.5kW, Fanuc 0i-TF Plus control – intuitive, fast and reliable. Benefits for the user: Easy to use – quick operator onboarding and simple programming, High productivity – machining with 2 tools in one cycle, Flexibility – possibility of processing short and long parts, Precision and stability – five-axis kinematics guarantee simultaneous machining, Versatility in applications – ideal for both turning and milling and drilling operations. The Tornos Swiss DT32HP is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic longitudinal lathe, capable of working in both small and large-scale production with the highest precision.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Swiss DT32HP – automatic lathes for precision production.
The Swiss DT32HP is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications.
Key features:
- Six models in the DT series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm,
- Five-axis and six-axis kinematics for DT7/6, DT10/6 and DT26/6-HP,
- Optional B axis – additional milling and angle operations capabilities,
- Working range: bar diameter up to 32 mm, headstock stroke 250 mm,
- Tool capabilities – up to 29 tools, including 14 driven ones,
- Spindle speed: up to 8,000 rpm (main spindle), up to 8,000 rpm (sub-spindle),
- Spindle power and speed: main spindle power 10.5kW, counter spindle power 10.5kW,
- Fanuc 0i-TF Plus control – intuitive, fast and reliable.
Benefits for the user:
- Easy to use – quick operator onboarding and simple programming,
- High productivity – machining with 2 tools in one cycle,
- Flexibility – possibility of processing short and long parts,
- Precision and stability – five-axis kinematics guarantee simultaneous machining,
- Versatility in applications – ideal for both turning and milling and drilling operations.
The Tornos Swiss DT32HP is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic longitudinal lathe, capable of working in both small and large-scale production with the highest precision.
Technical Parameters
| SKU: | DT32HP |
|---|---|
| Brand: | Tornos |
| Maximum turning length (mm): | 250/80 |
| Maximum workpiece length (standard parts catcher) (mm): | 90 |
| Maximum workpiece length (mm): | 110 |
| Rapid traverse rate (m/min): | 32(X1:30) |
| Maximum spindle speed (rpm): | 8000 |
| Maximum bar capacity (mm): | 32 |
| Maximum tapping size: | M10xP1.5 |
| Maximum drilling diameter (mm): | 12.00 |
| Maximum tapping size on main / sub spindle: | M10 x P1.5 |
| Maximum drill diameter for main / sub-spindle (mm): | 12.00 |
| Maximum spindle speed (RPM): | 7,500.00 |
| Maximum sub-spindle speed (RPM): | 8000 |
| Number of driven tools: | 14.00 |
| Number of radial driven tools: | 6(ER20) |
| Total number of driven tools: | 2x3(2x4op.) |
| Number of fixed axial tools: | 5 |
| Maximum number of turning tools: | 5 |
| Maximum number of fixed axial tools for main / sub-spindle: | 4/4 (5/5 op.) |
| Maximum number of tools: | 28.00 |
| Maximum speed of main / sub-spindle driven tools (rpm): | 6000/3800(ER25) |
| Maximum tap size for driven tools: | M8x1.25 |
| Maximum drill diameter for driven tools (mm): | 10 |
| Maximum drive power (kW): | 1 |
| Number of high-speed driven tools: | 1(op.) |
| Shank Size (mm): | (16x16mm) |
| Machine dimensions (length x width x height) (mm): | 2560x1285x2080 |
| Machine weight (kg): | 2710 |
| Control: | Fanuc 0i-TF Plus |
| Maximum connected power (kW): | 20.00 |
| Tank capacity (L): | 210.00 |
FAQ
What applications is the Swiss DT32HP intended for?
The Swiss DT32HP is designed for the precise production of long and short turned bar parts, in small and large-scale production where accuracy and high efficiency are key.
What bar diameter and length can be machined on the DT32HP?
The machine handles bars up to 32 mm in diameter, with a standard headstock stroke of 250 mm, allowing for efficient machining of both short and longer workpieces.
How many tools can be mounted on the machine and how many of them are powered?
The Swiss DT32HP allows for mounting up to 28–29 tools, of which up to 14 are driven tools, which provides a wide range of turning, milling and drilling operations in a single setup.
What are the parameters of the main and sub spindles?
Both the main and sub-spindles reach up to 8,000 rpm and have a power of up to 10.5 kW, ensuring dynamic, stable machining and short cycle times.
What kinematics does the Swiss DT series offer and what does the optional B-axis provide?
Swiss DT machines offer five-axis or six-axis kinematics (depending on the model in the series), and the optional B-axis enables angle machining and extensive milling operations, increasing the flexibility of the technology.
What is the flexibility of the DT series in terms of bar diameters?
The Swiss DT series includes six models adapted to process bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm, allowing you to select the machine optimally for the range of parts you produce.
What are the benefits of the Fanuc 0i TF Plus control in the Swiss DT32HP?
The Fanuc 0i TF Plus control provides intuitive, fast and reliable operation, shortens operator training time and enables efficient programming of turning cycles and milling and drilling operations.
Does the Swiss DT32HP allow multiple tools to work simultaneously?
Yes. The machine allows for machining with two tools in a single cycle, significantly reducing machining time and increasing productivity while maintaining high accuracy.
How does the Swiss DT32HP increase process precision and stability?
Five-axis kinematics, stable construction and optimal tool arrangement ensure simultaneous machining with high dimensional accuracy and repeatability, even for more complex details.
What types of operations is the Swiss DT32HP suitable for?
The machine is ideal for both typical longitudinal turning and extensive milling and drilling operations, thanks to the large number of driven tools and the possibility of using the B axis.
