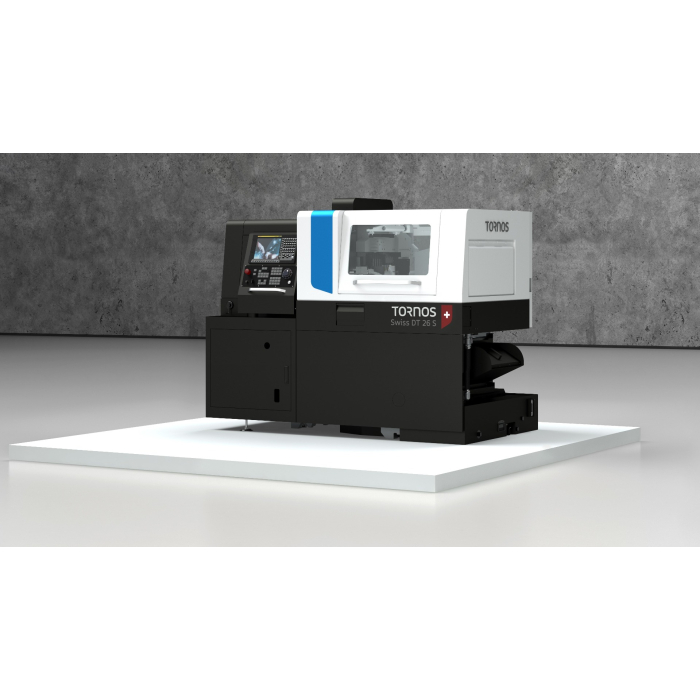

Tornos DT26S automatic lathe
SKU: DT26S
Swiss DT26S – automatic lathes for precision production. The Swiss DT26S is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications. Key features: Six models in the series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm, Five-axis and six-axis kinematics for DT7/6, DT10/6 and DT26/6-HP, Working range: bar diameter up to 25.4 mm, headstock stroke 240 mm, Tool capacity – up to 28 tools, including 14 driven ones, Spindle speed: up to 10,000 rpm (main spindle), up to 10,000 rpm (sub-spindle), Spindle power and speed: main spindle power 10.5kW, counter spindle power 2kW, Fanuc 0i-TF Plus control – intuitive, fast and reliable. Benefits for the user: Easy to use – quick operator onboarding and simple programming, High productivity – machining with 2 tools in one cycle, Flexibility – possibility of processing short and long parts, Precision and stability – five-axis kinematics guarantee simultaneous machining, Versatility in applications – ideal for both turning and milling and drilling operations. The Tornos Swiss DT26S is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic longitudinal lathe, capable of working in both small and large-scale production with the highest precision.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Swiss DT26S – automatic lathes for precision production.
The Swiss DT26S is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications.
Key features:
- Six models in the series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm,
- Five-axis and six-axis kinematics for DT7/6, DT10/6 and DT26/6-HP,
- Working range: bar diameter up to 25.4 mm, headstock stroke 240 mm,
- Tool capacity – up to 28 tools, including 14 driven ones,
- Spindle speed: up to 10,000 rpm (main spindle), up to 10,000 rpm (sub-spindle),
- Spindle power and speed: main spindle power 10.5kW, counter spindle power 2kW,
- Fanuc 0i-TF Plus control – intuitive, fast and reliable.
Benefits for the user:
- Easy to use – quick operator onboarding and simple programming,
- High productivity – machining with 2 tools in one cycle,
- Flexibility – possibility of processing short and long parts,
- Precision and stability – five-axis kinematics guarantee simultaneous machining,
- Versatility in applications – ideal for both turning and milling and drilling operations.
The Tornos Swiss DT26S is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic longitudinal lathe, capable of working in both small and large-scale production with the highest precision.
Technical Parameters
| SKU: | DT26S |
|---|---|
| Brand: | Tornos |
| Maximum turning length (mm): | 220/55 |
| Maximum workpiece length (standard parts catcher) (mm): | 90 |
| Maximum workpiece length (mm): | 110 |
| Rapid traverse rate (m/min): | 32(X1:30) |
| Maximum spindle speed (rpm): | 10000 |
| Maximum tapping size: | M10xP1.5 |
| Maximum drilling diameter (mm): | 10.00 |
| Maximum tapping size on main / sub spindle: | M10 x P1.5 |
| Maximum drill diameter for main / sub-spindle (mm): | 10.00 |
| Maximum spindle speed (RPM): | 7,500.00 |
| Maximum sub-spindle speed (RPM): | 8000 |
| Number of driven tools: | 14.00 |
| Number of radial driven tools: | 6(ER20) |
| Number of fixed axial tools: | 5 |
| Maximum number of turning tools: | 6\5 |
| Maximum number of fixed axial tools for main / sub-spindle: | 4/4 (5/5 op.) |
| Maximum number of tools: | 28.00 |
| Maximum speed of main / sub-spindle driven tools (rpm): | 6000 |
| Maximum tap size for driven tools: | M5xP0.8/M6x1.0 |
| Maximum drill diameter for driven tools (mm): | 6/10 |
| Maximum drive power (kW): | 1 |
| Shank Size (mm): | (12x12mm)/(16x16mm) |
| Machine dimensions (length x width x height) (mm): | 2230x1088x1730 |
| Machine weight (kg): | 2300 |
| Control: | Fanuc 0i-TF Plus |
| Maximum connected power (kW): | 18.00 |
| Tank capacity (L): | 210.00 |
FAQ
What applications is the Swiss DT26S intended for?
The Swiss DT26S is designed for the precise production of long and short bar turned parts, in both small and large-scale production where accuracy and high efficiency are key.
What bar diameter and length can be machined on the DT26S?
The machine handles bars up to 25.4 mm in diameter, with a headstock stroke of approximately 220–240 mm, allowing for the efficient machining of a wide range of workpieces.
How many tools can be mounted and how many of them are powered?
The Swiss DT26S offers up to 28 tool positions, of which 14 can be driven, enabling the implementation of extensive turning, drilling and milling cycles in a single setup.
What are the parameters of the main and sub spindles?
The main spindle reaches up to 10,000 rpm with a power of up to 10.5 kW, while the counter spindle works up to 10,000 rpm with a power of approx. 2 kW (in practice 1.5–2.2 kW depending on the version).
What kinematics does the Swiss DT series offer and how does it affect precision?
The Swiss DT series uses five-axis kinematics (and in selected models also six-axis), which enables simultaneous machining and ensures high precision and process stability even with complex details.
What are the benefits of the Fanuc 0i TF Plus control?
The Fanuc 0i TF Plus control is intuitive, fast and reliable, offering modern features for lathes and simplifying programming and reducing operator onboarding time.
Does the Swiss DT26S allow multiple tools to work simultaneously?
Yes. The machine allows for machining with two tools in a single cycle, which significantly increases productivity and shortens the production time of the part.
How does the Swiss DT26S ensure process precision and stability?
The stable construction, five-axis kinematics and a large number of driven tools guarantee rigid, simultaneous machining with high dimensional accuracy and repeatability.
What types of operations is the Swiss DT26S best suited for?
The machine is ideal for both classic longitudinal turning and milling and drilling operations, making it a versatile solution for many precision machining applications.
