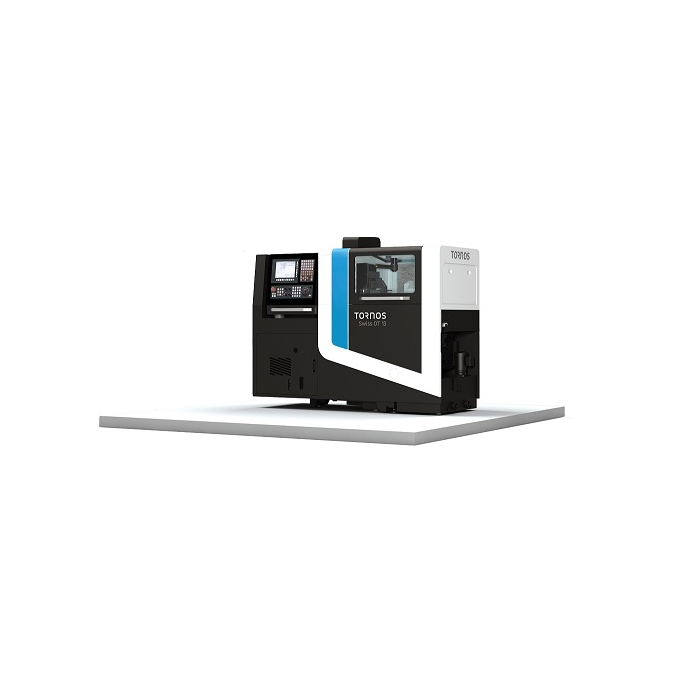

TORNOS DT13 HP automatic lathe
SKU: DT13HP
Swiss DT13HP – automatic lathes for precision production. The Swiss DT13HP is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications. Key features: Six models in the DT series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm, Five-axis and six-axis kinematics for DT7/6, DT10/6 and DT26/6-HP, Optional B axis – additional milling and angle operations capabilities, Working range: bar diameter up to 13 mm, headstock stroke 210 mm, Tool capabilities – up to 29 tools, including 18 driven tools, Spindle speed: up to 15,000 rpm (main spindle), up to 15,000 rpm (sub-spindle), Power and speed of spindles: main spindle power 5.36kW, sub-spindle power 5.36kW, Fanuc 0i-TF Plus control – intuitive, fast and reliable. Benefits for the user: Easy to use – quick operator onboarding and simple programming, High productivity – machining with 2 tools in one cycle, Flexibility – possibility of processing short and long parts, Precision and stability – five-axis kinematics guarantee simultaneous machining, Versatility in applications – ideal for both turning and milling and drilling operations. The Tornos Swiss GT13 is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic longitudinal lathe, capable of working in both small and large-scale production with the highest precision.
Ask an advisor
Want to know price, configuration or delivery time?
Interested in this machine?
Contact our sales department.
We will respond within 48 hours.
Product description
Swiss DT13HP – automatic lathes for precision production.
The Swiss DT13HP is a Swiss-style CNC automatic lathe characterized by ease of use, flexibility, and high precision. Designed for the production of both long and short turned parts, the machine offers robust technological capabilities for a variety of applications.
Key features:
- Six models in the DT series – processing bars with diameters of 7, 10, 13, 25.4, 32 and 38 mm,
- Five-axis and six-axis kinematics for DT7/6, DT10/6 and DT26/6-HP,
- Optional B axis – additional milling and angle operations capabilities,
- Working range: bar diameter up to 13 mm, headstock stroke 210 mm,
- Tool capabilities – up to 29 tools, including 18 driven tools,
- Spindle speed: up to 15,000 rpm (main spindle), up to 15,000 rpm (sub-spindle),
- Power and speed of spindles: main spindle power 5.36kW, sub-spindle power 5.36kW,
- Fanuc 0i-TF Plus control – intuitive, fast and reliable.
Benefits for the user:
- Easy to use – quick operator onboarding and simple programming,
- High productivity – machining with 2 tools in one cycle,
- Flexibility – possibility of processing short and long parts,
- Precision and stability – five-axis kinematics guarantee simultaneous machining,
- Versatility in applications – ideal for both turning and milling and drilling operations.
The Tornos Swiss GT13 is a lathe designed for companies that need an efficient, versatile and easy-to-use automatic longitudinal lathe, capable of working in both small and large-scale production with the highest precision.
Technical Parameters
| SKU: | DT13HP |
|---|---|
| Brand: | Tornos |
| Maximum turning length (mm): | 185/30 |
| Maximum workpiece length (standard parts catcher) (mm): | 100 |
| Maximum workpiece length (mm): | 120 |
| Rapid traverse rate (m/min): | 32(X1:30) |
| Maximum spindle speed (rpm): | 15000 |
| Maximum bar capacity (mm): | 13 |
| Maximum tapping size: | M6xP1.0 |
| Maximum drilling diameter (mm): | 10.00 |
| Maximum tapping size on main / sub spindle: | M6 x P1.0 |
| Maximum drill diameter for main / sub-spindle (mm): | 10.00 |
| Spindle power S1 S6 (kW): | 4/5 |
| Maximum spindle speed (RPM): | 7,200.00 |
| Maximum sub-spindle speed (RPM): | 15000 |
| Sub-spindle motor power (kW): | 4/5 |
| Number of driven tools: | 14.00 |
| Number of radial driven tools: | 6(ER20/ER11) |
| Total number of driven tools: | 2x3(2x4op.) |
| Number of fixed axial tools: | 5 |
| Maximum number of turning tools: | 6\9 |
| Maximum number of fixed axial tools for main / sub-spindle: | 4/4 (5/5 op.) |
| Maximum number of tools: | 28.00 |
| Maximum speed of main / sub-spindle driven tools (rpm): | 8000 |
| Maximum tap size for driven tools: | M5xP0.8 |
| Maximum drill diameter for driven tools (mm): | 6 |
| Maximum drive power (kW): | 1 |
| Number of high-speed driven tools: | 1(op.) |
| Shank Size (mm): | (12x12mm)\(8x8mm) |
| Machine dimensions (length x width x height) (mm): | 2230x1250x1730 |
| Machine weight (kg): | 2300 |
| Control: | Fanuc 0i-TF Plus |
| Maximum connected power (kW): | 26.00 |
| Tank capacity (L): | 200.00 |
FAQ
What applications is the Swiss DT13HP intended for?
The Swiss DT13HP is designed for the precise production of long and short turned parts from small diameter bar, in small and large-scale production where high accuracy and efficiency are essential.
What bar diameter and length can be machined on the DT13HP?
The machine handles bars up to 13 mm in diameter, with a standard headstock stroke of approximately 180–210 mm, which allows for the efficient processing of typical details for precision industries.
How many tools can be mounted and how many of them are powered?
The Swiss DT13HP offers up to 28–29 tool positions, of which up to 14–18 can be driven (depending on configuration), enabling extensive turning, drilling and milling cycles in a single setup.
What are the parameters of the main and sub spindle?
Both the main and sub-spindles reach speeds of up to 15,000 rpm with a power of approximately 4.0/5.0 kW (S1/S6), ensuring high cutting speeds, excellent surface quality and a stable machining process.
What kinematics does the Swiss DT series offer and what does it offer in practice?
The Swiss DT series uses advanced five-axis kinematics (also six-axis in selected models), which enables simultaneous machining and guarantees high precision and process stability even with complex details.
What is the optional B-axis for on the Swiss DT13HP?
The optional B axis expands milling and angle machining capabilities, allowing you to perform more complex shapes and operations without the need for additional fixtures or other machines.
What are the benefits of the Fanuc 0i TF Plus control?
The Fanuc 0i TF Plus control is intuitive, fast and reliable, facilitating the programming of turning cycles and milling and drilling operations and reducing operator training time.
Does the Swiss DT13HP allow for simultaneous operation of several tools?
Yes. The machine allows you to work with two tools in a single cycle, significantly reducing machining time and increasing productivity while maintaining high accuracy.
How does the Swiss DT13HP ensure process precision and stability?
A rigid, FEM-optimized cast iron base, efficient spindles with ceramic bearings, and advanced five-axis kinematics ensure excellent vibration damping, thermal stability, and repeatable accuracy.
For which companies and applications will the Swiss DT13HP be the best choice?
The Swiss DT13HP is ideal for companies requiring an efficient, flexible and easy-to-use automatic lathe for precision production in small and large batches, especially in industries such as medicine, micromechanics, electronics and precision automation.
